RCCT-25D
RCCT-25D view 1

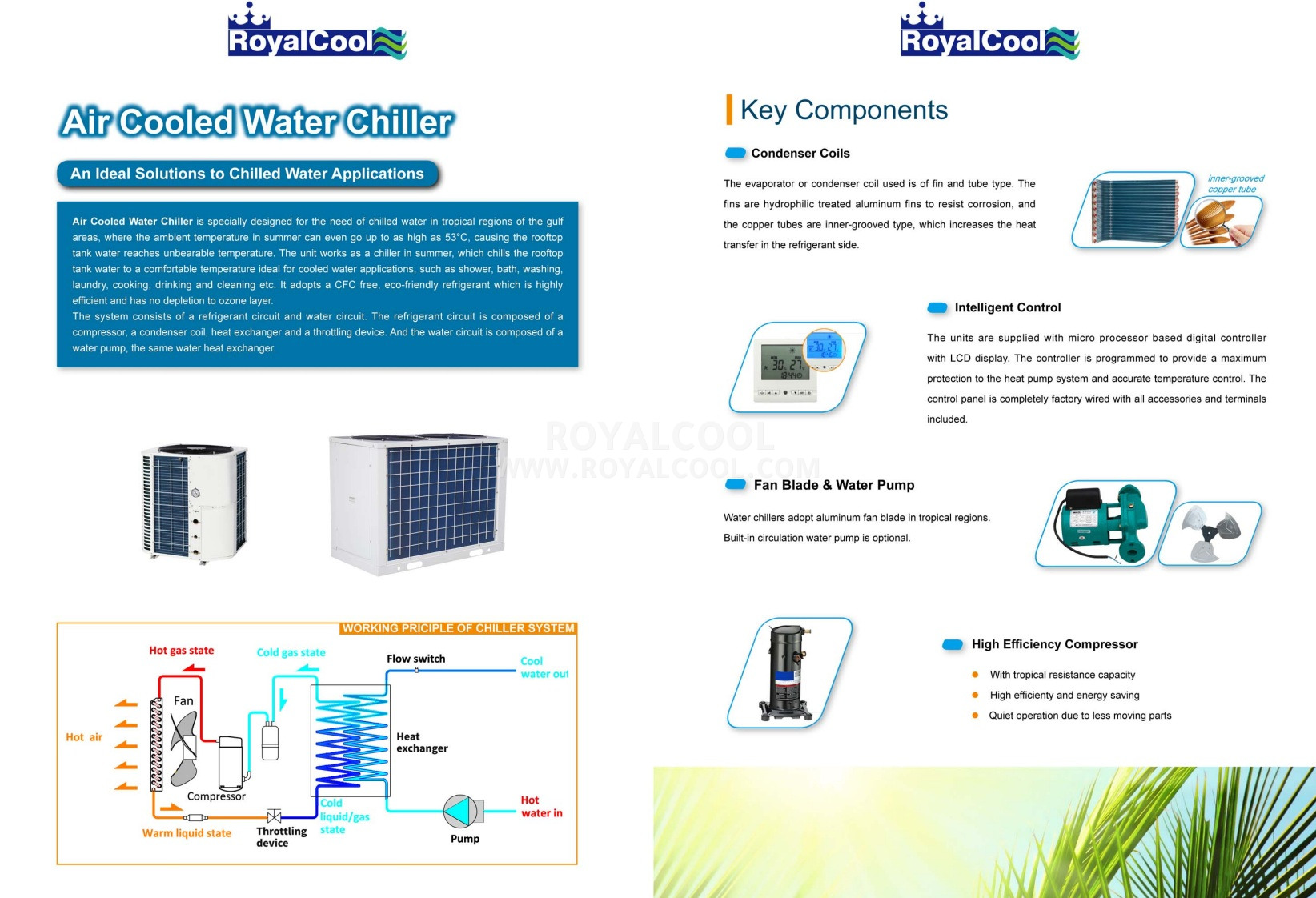

RCCT-25D view 2

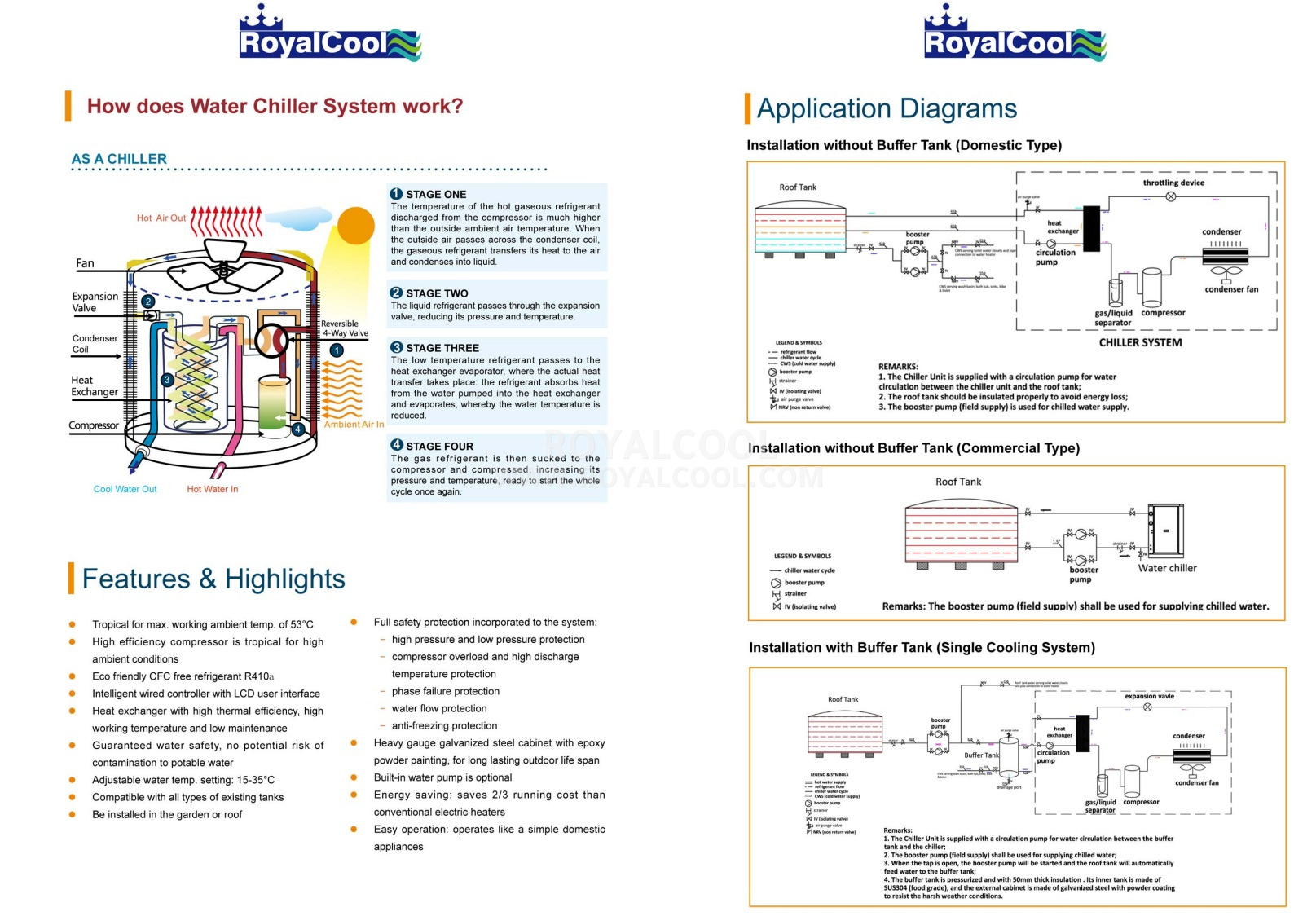

RCCT-25D view 3

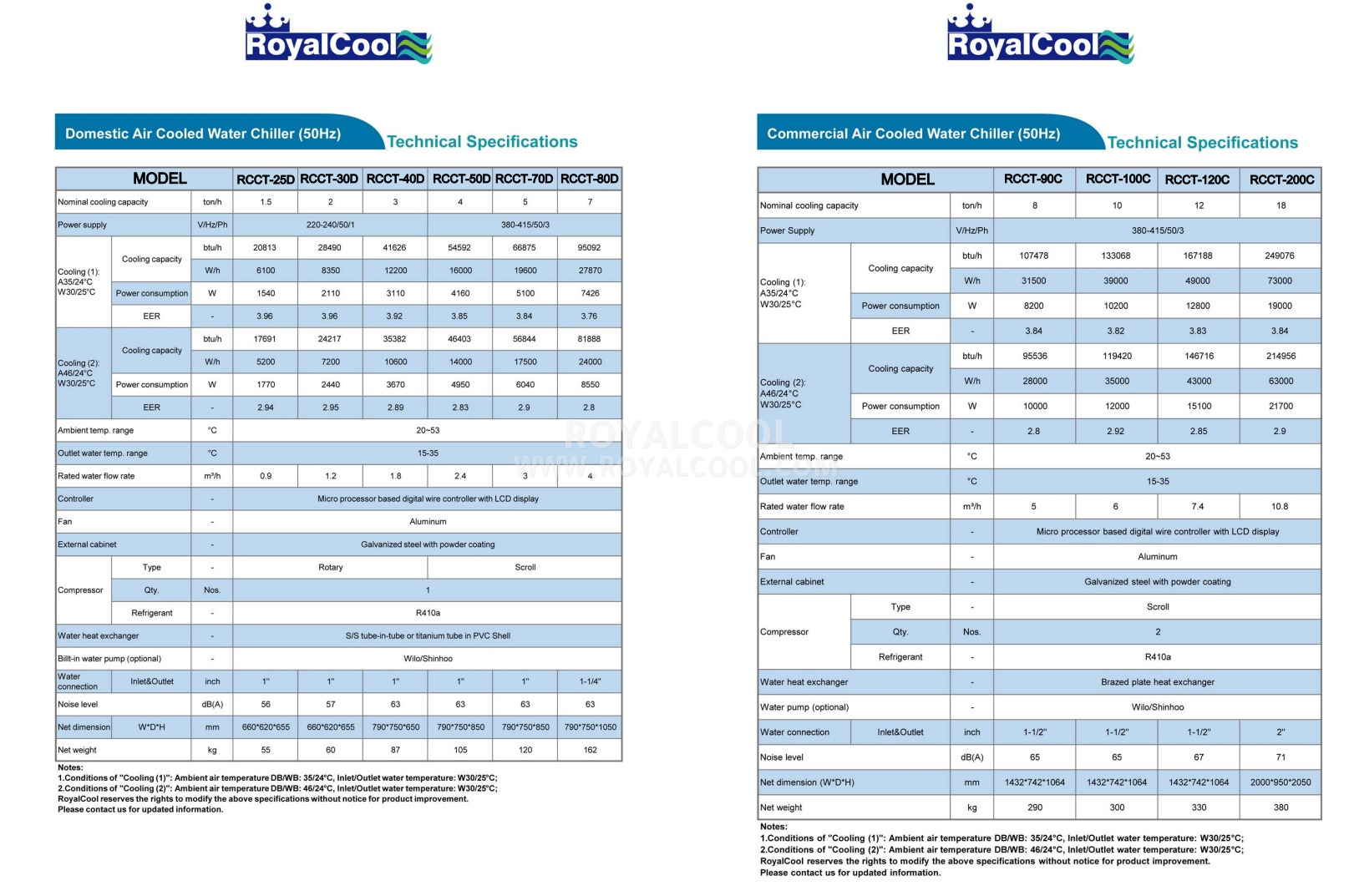

RCCT-25D view 4
Top-Discharge Air-Cooled Water Chiller

RCCT-25D

The smallest chiller in the RCCT range — chilled water for a villa or a single floor.

CAPACITY
1.5 TR
AIR DISCHARGE
Top Discharge
REFRIGERANT
R-410A
WATER EXCHANGER
Brazed plate — stainless steel
Request a quote → Find a distributor

Engineered for real conditions

The RCCT-25D is the entry point of the Royal Cool RCCT air-cooled water chiller range. It is designed and built to UAE standards to keep working through the extreme summer conditions of the Gulf and Iraq.

With an approximate cooling capacity of 1.5 refrigeration tons it suits villas, apartments and small commercial spaces. Side air intake with top discharge of the hot condenser air keeps warm air from recirculating into the coil, which is what makes the unit workable on a rooftop or in a tight service yard.

The chiller feeds a network of fan-coil units or air-handling units, so a whole property runs on one quiet water loop instead of a wall full of split units.

KEY FEATURES
UAE design and manufacture, built for Gulf and Iraqi heat
Top Discharge — hot air is thrown upwards, ideal for rooftops and narrow gaps between buildings
Air cooled: no cooling tower needed, just the fans and the air condenser
Tropical design for long running hours at high outdoor temperatures
Feeds fan coils, AHUs or a full chilled-water network
Galvanised and coated casing that resists rust, humidity and dust
Digital control panel with water temperature control, fault display and timed start/stop
Full protection for compressor, fans and pump, with easy service access
Approximate cooling capacity1.5 TR
Chiller typeAir-cooled water chiller
Air dischargeTop Discharge — hot air discharged upwards
RefrigerantR-410A, environmentally friendly
Water heat exchangerBrazed plate heat exchanger, stainless steel
Country of design / originUnited Arab Emirates
Ambient operating rangeDesigned for high-ambient Gulf and Iraqi climates
Typical applicationsResidential, commercial, light industrial, hospitality

Figures are nominal. Ask our engineers for the selection sheet for your design conditions.
